Hospital Concept and Design

Hospital Concept and Design : during project design of built-in operating theatres many mistakes are done in positioning of individual rooms like corridors, patient and personnel movement as well as transfer of sterile and used material to operating theater. As per sample pictures from presentation: Focus: operating theater - department including sterilization. Mr. Gerhard Ullrich (Dräger) has shown on attached pictures patient and personnel movement as well as transfer of sterile and used material to operating rooms and central sterilization.

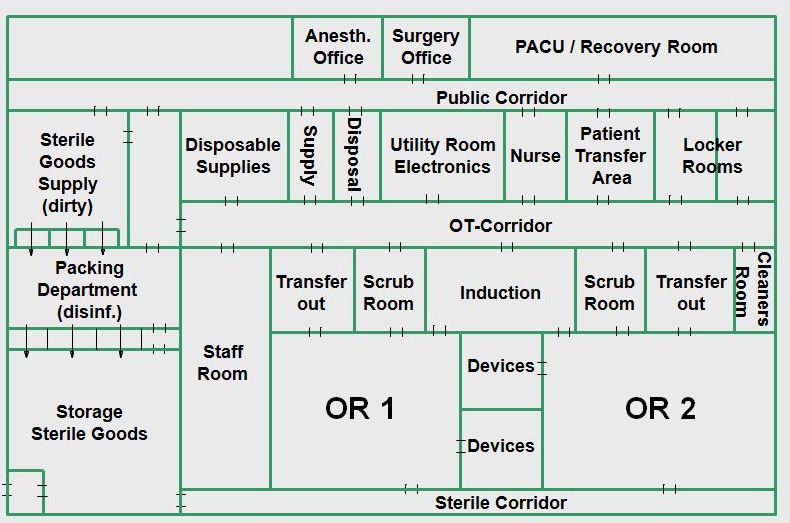

1. OR- Department + Sterilization

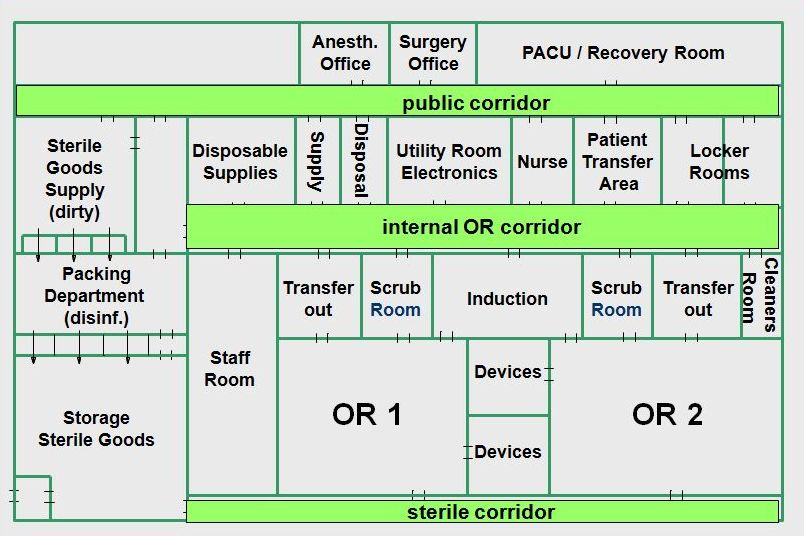

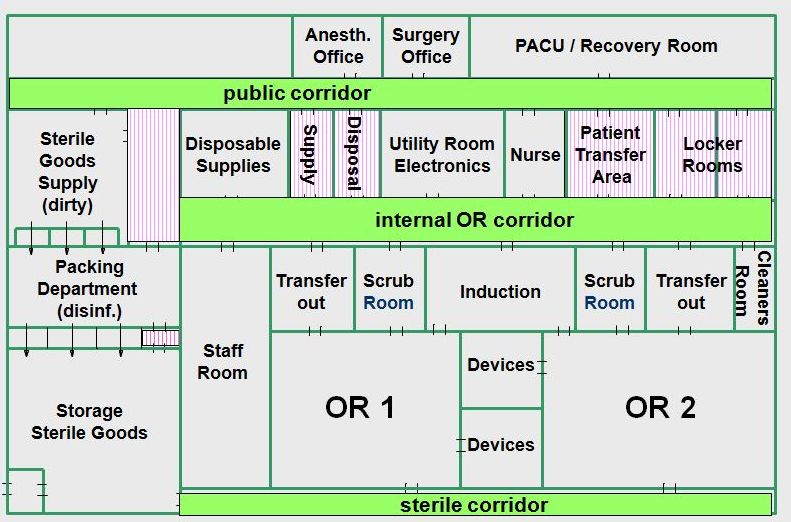

2.  „Three Corridor System“

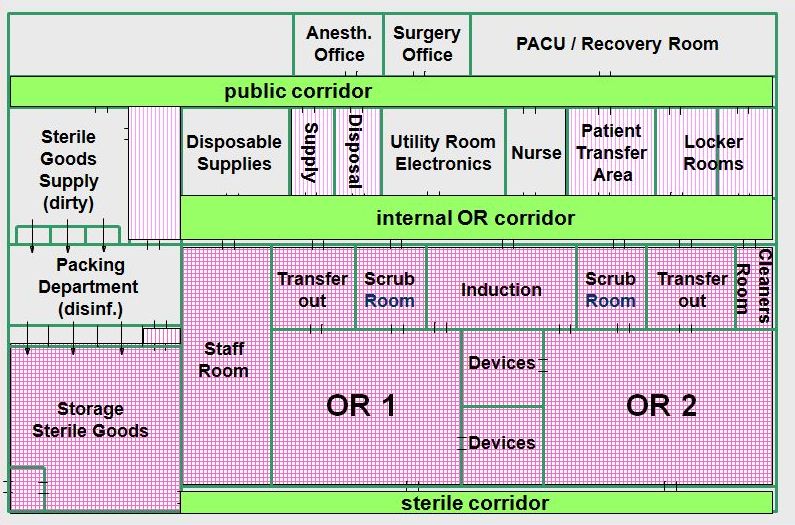

3. „Three Corridor System“…with transfer rooms

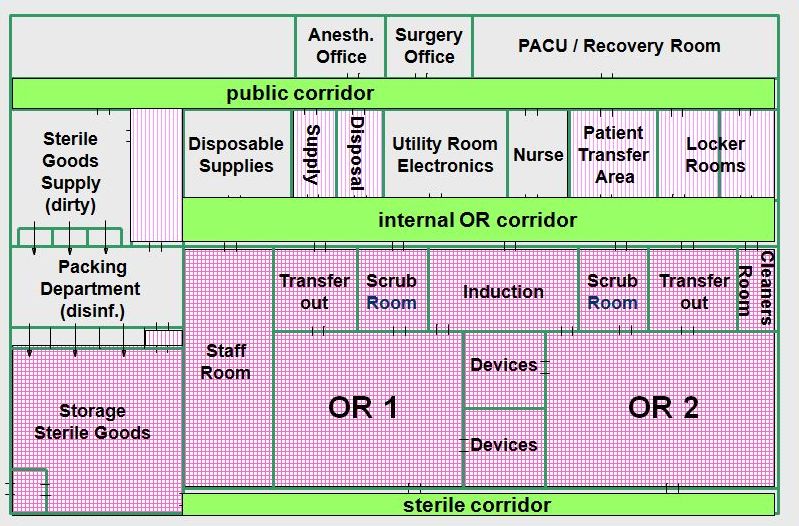

4. „Three Corridor System“ + aseptic area







5. Workflow for: Patients + Staff + Instruments

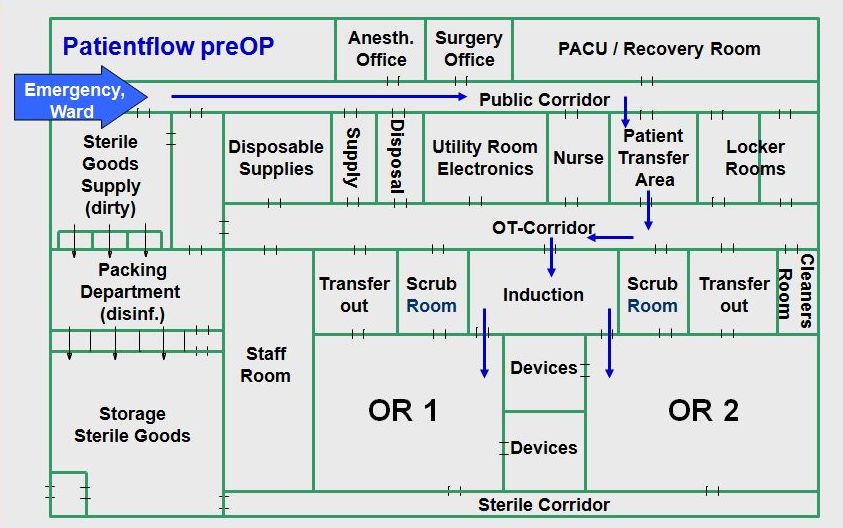

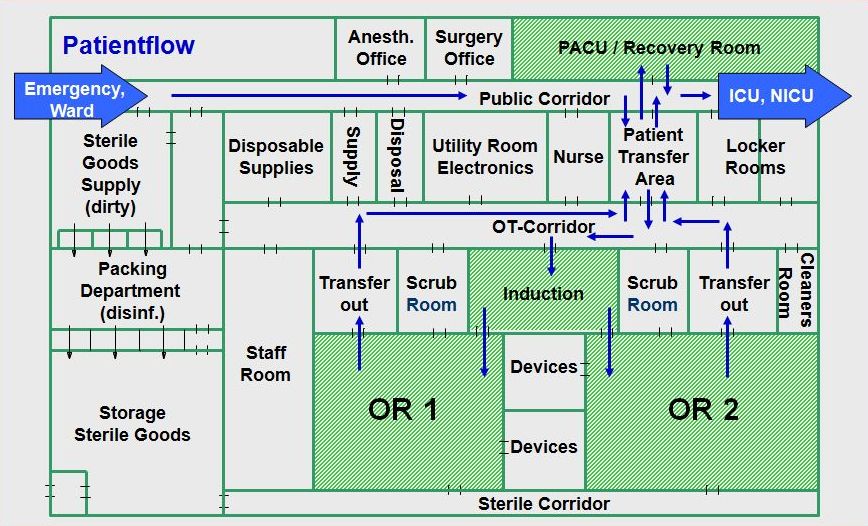

6. Patientflow preOP

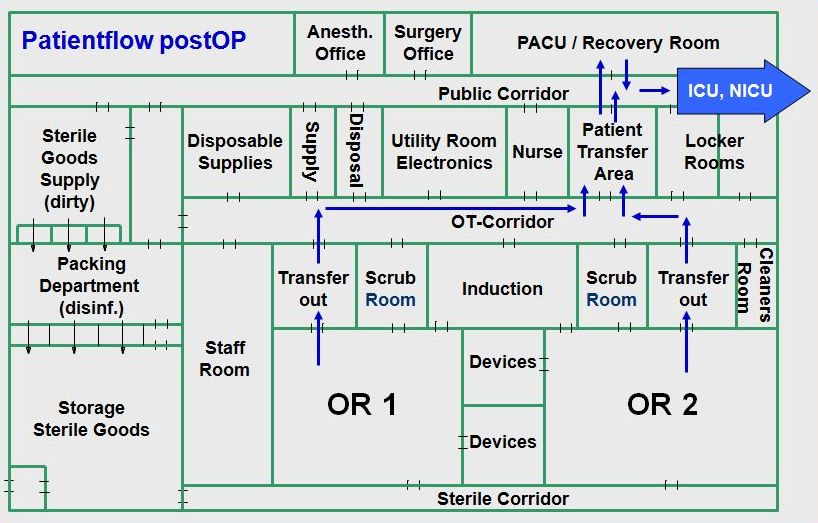

7. Patientflow postOP





8. Patientflow

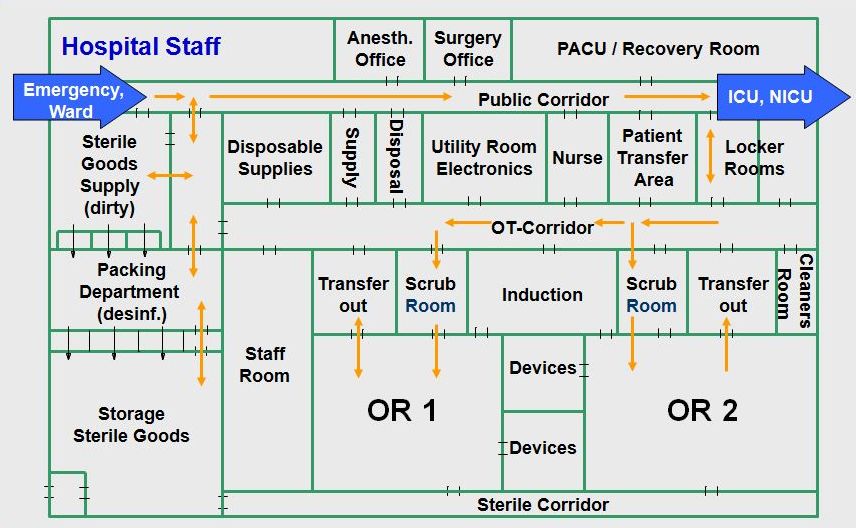

9. Hospital Staff

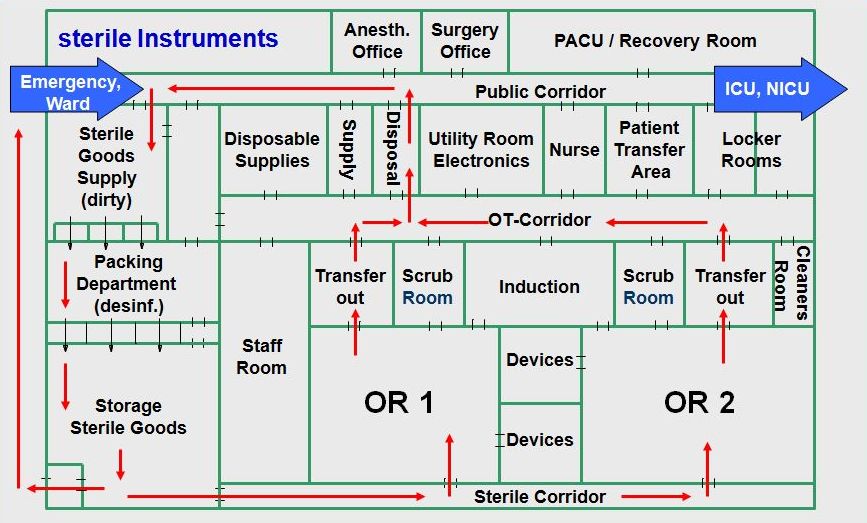

10. sterile Instruments

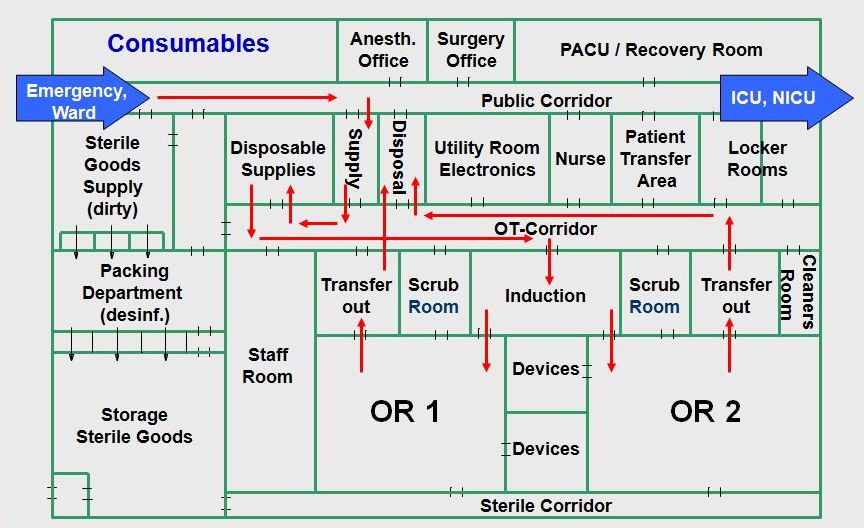

11.Consumables

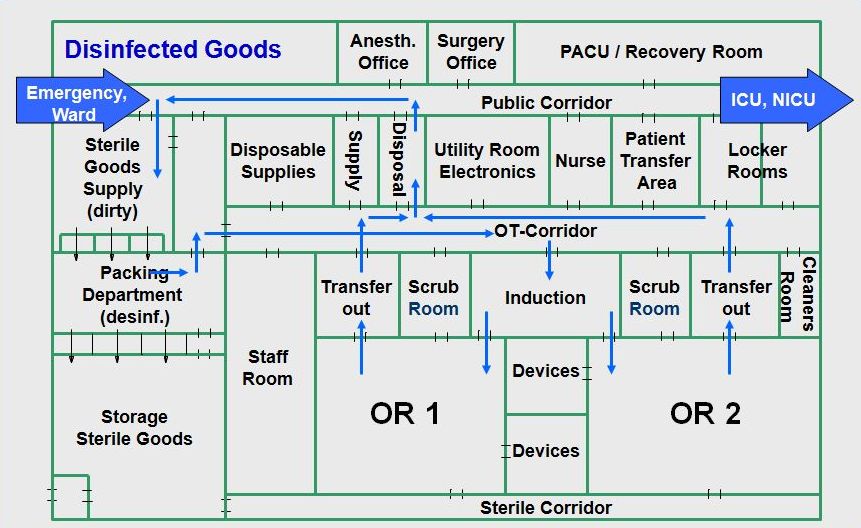

12.Disinfected Goods
